Designed to close the gap between conventional manufacturing and additive, Hylo™ delivers industry-leading part performance and throughput while a fully automated printing experience and sensor-driven architecture enable new levels of accuracy and repeatability. Print stronger, larger, and faster in any material, no upgrades or unlock fees required.

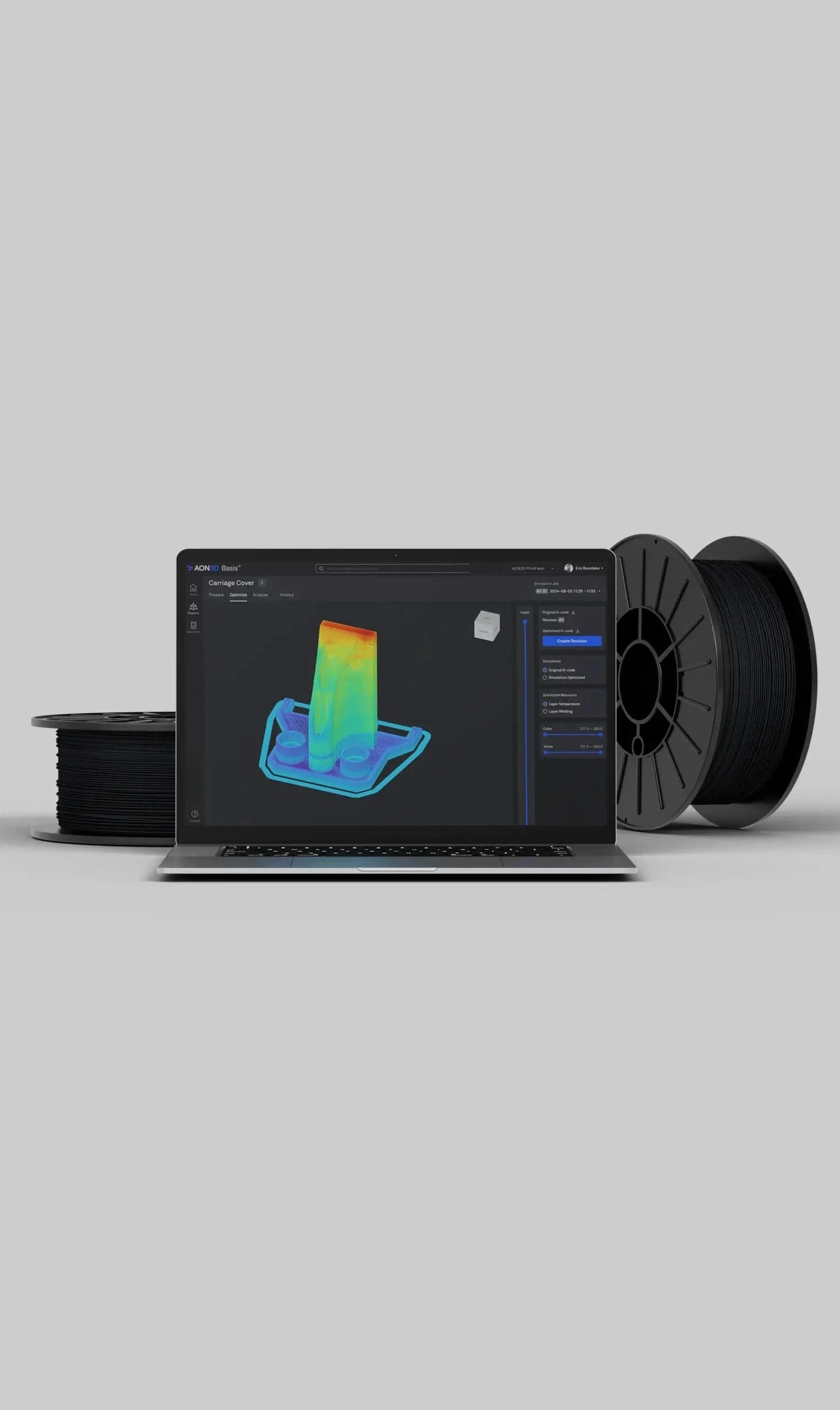

AON3D Basis™ closes the loop in additive manufacturing. Manage your projects and printers, achieve new levels of repeatability and part performance with machine learning optimization, and access process logs to aid in part qualification and quality assurance, all from a central platform.
Printing Technology
Material Extrusion (MEX)
Similar to FDM/FFF
Build Volume
650 x 450 x 450 mm (XYZ)
25.6 x 17.7 x 17.7 inches
Build Platform Material
Auto-leveling with vacuum chuck
Swappable Build Surfaces:
CF PEEK, PEI, Garolite, and more (Reusable sheets or plates)
Build Platform Leveling
Adaptive mesh leveling
Dual Independent (Composite-ready)
Layer Resolution
0.05-1.2mm
Speeds
Travel Speed: 600mm/s
Print Speed: up to 500mm/s
Up to 100 mm^3/s or 360 cm^3/hr (Polymer dependent)
Filament Diameter
Standard 1.75mm Filament
Open Material System
Nozzle Sizes
0.2, 0.25, 0.3, 0.4, 0.6 (Standard), 0.8, 1.0, 1.2 mm
Position Accuracy
X/Y: ± 10 um Z: ± 1.5 um
Error Detection
CE, CSA/UL available upon request
Control Interface
12.3 in. LCD touch screen, cloud management
Recommended Slicer
SuperSlicer, PrusaSlicer
(All AON3D validated material profiles included. No internet connection required)
Extruder Temperature
500°C+
Build Plate Temperature
250°C
Chamber Temperature
250°C
Chamber Heat-Up Time
Printing Modes
Connectivity
Power Consumption
208-240VAC, 50 A, Single Phase
Machine Dimensions
Installed Dimensions:
1258 x 870 x 1892 mm (XYZ)
Space Requirements
2258 x 1470 x 2600 mm (XYZ)
Shipping Weight & Dimensions
Heavy Freight,650 kg
Materials
ABS, ASA, Nylon (PA 6, 6/66, 12), PAEK, PC, PEBA, PEEK, PEI (ULTEM™ 9085, 1010),PI, PEKK, PETG, PLA, POM, PP, PPSU, PSU, PVDF, TPE, TPU, and many more.Carbon fiber, glass fiber, Kevlar®, and ESD safe variants of the above.Various soluble and breakaway support materials.
Material Storage Capacity
Up to four 2.2 kg reels or two 5kg reels
Material Loading/Changeover
Fully Automated
Material Storage Dewpoint
-25ºC
Emission Filtration
HEPA/Activated Carbon Filter
Warranty
AON3D Warranty
Call or email sales@visionminer.com
for a detailed quote
